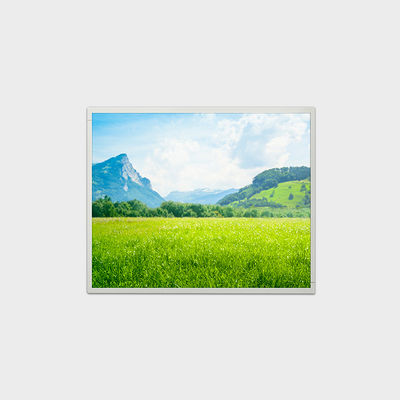

19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion

  • 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion
Lugar de origem Shenzhen
Marca ROGIN
Número do modelo LCMA-RX0190GB01-C050
Quantidade de ordem mínima 5
Preço Price is negotiable.
Detalhes da embalagem Caixas ou caixas de madeira
Tempo de entrega 6-8 semanas
Termos de pagamento T/t, l/c
Habilidade da fonte Spot Adequação

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome TFT LCD Display Tamanho do painel 19 "
Resolução 1280*1024 Brilho 500 (Tip.)
Temperatura operacional. 0 ~ 50 ℃ Área ativa 374.784*299.82mm
Dimensão de contorno 396*324*10,4 mm
Destacar

19 inch TFT LCD display

,

LVDS interface TFT display

,

1280x1024 resolution LCD screen
Deixe um recado
Descrição de produto
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Solution
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Solution
Product Advantage
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Application
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 0 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 1 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 2 19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion 3
Specifications
LCMA-RX0190GB01-C050
Brand Rogin
Series TFT LCD Display
Panel Size 19 inch
Model LCMA-RX0190GB01-C050
Brightness 500
Resolution 1280*1024
Active Area 374.784*299.82mm
Overall Size 396*324*10.4mm
Viewing Angle 85/85/80/80
Interface Definition LVDS
Backlight Type WLED
Contrast Ratio 1000:1
Touch Panel Without
Operating Temperature 0-50 ℃
