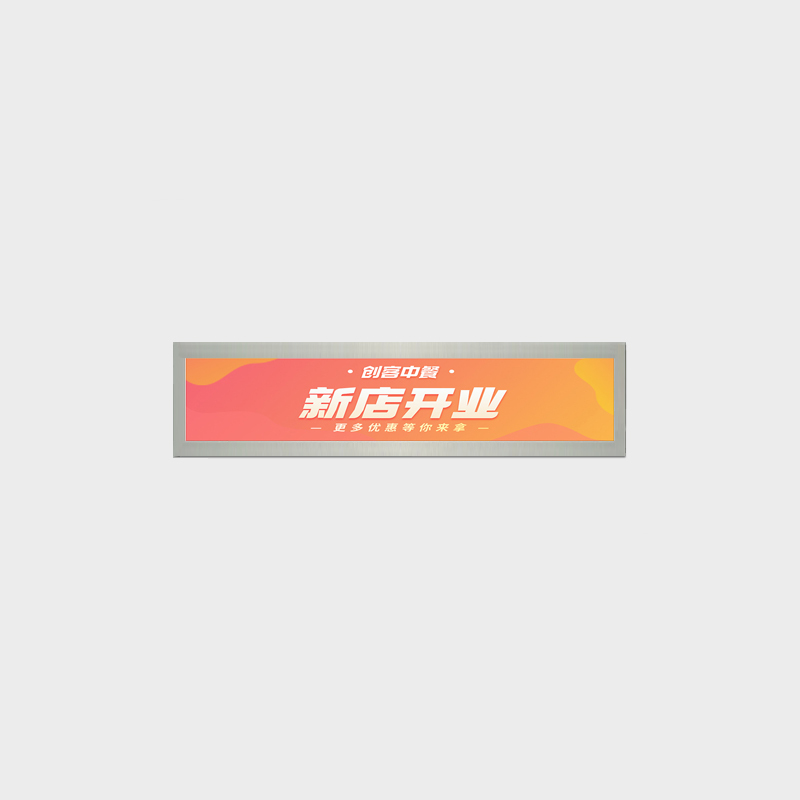

15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness

  • 15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness
Lugar de origem Shenzhen
Marca ROGIN
Número do modelo LCMA-RX0150TB01-C030
Quantidade de ordem mínima 5
Preço Price is negotiable.
Detalhes da embalagem Caixas ou caixas de madeira
Tempo de entrega 6-8 semanas
Termos de pagamento T/t, l/c
Habilidade da fonte Spot Adequação

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Nome Exposição do LCD da barra Tamanho do painel 15"
Resolução 1280*248 Brilho 300 (tipo.)
Temperatura operacional. 0 ~ 50 ℃ Área ativa 374.78*72.61mm
Dimensão de contorno 396*100.8*12,58 mm
Destacar

15 inch bar LCD display

,

LVDS interface bar display

,

700nits brightness bar screen
Deixe um recado
Descrição de produto
15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness
Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness 0 15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness 1 15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness 2 15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness 3
Specifications
LCMA-RX0150TB01-C030
Brand Rogin
Series Bar Type LCD Display
Panel Size 15 inch
Model LCMA-RX0150TB01-C030
Brightness 300
Resolution 1280*248
Active Area 374.78*72.61mm
Overall Size 396*100.8*12.58mm
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 1000:1
Touch Panel Without
Operating Temperature 0~50 ℃
